- Shank tolerance: h6
- With inner coolant bore
- Optional with Safe-Lock
Description

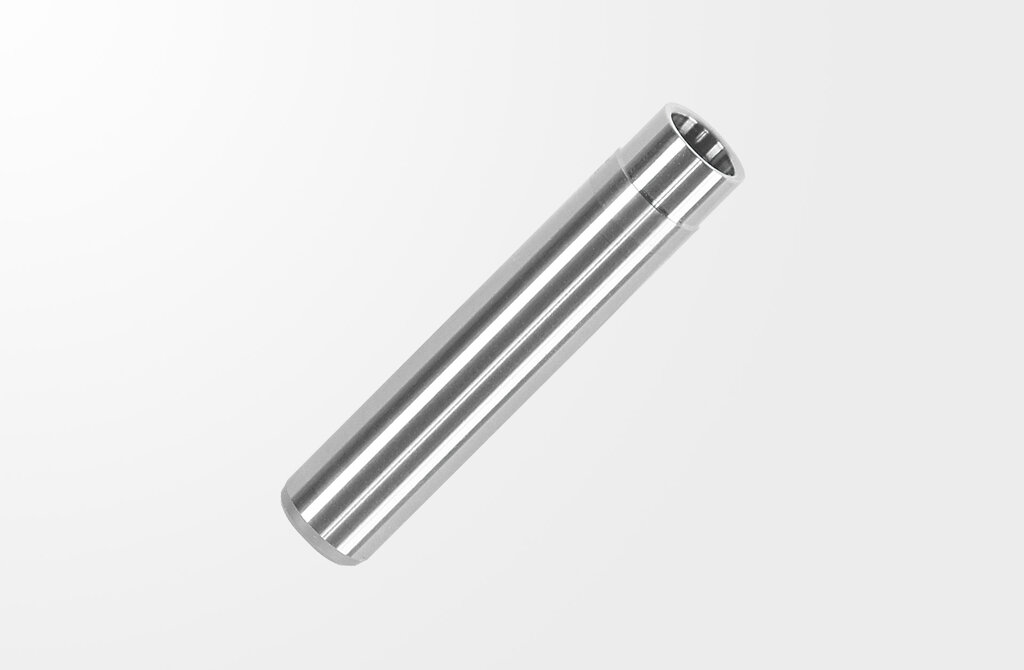

Duo-Lock Extensions Cylindrical - Short - Steel
Quality pass
Shank tolerance h6
Inner coolant bore
HAIMER TIP
Also available:
Extensions with coating - for perfect shrinking in and out even at high forces during machining
Technical specifications
Notice
Attention:
For long-life cycle of the system compliance with the torque is required! Technical data subjects to change without prior notice.

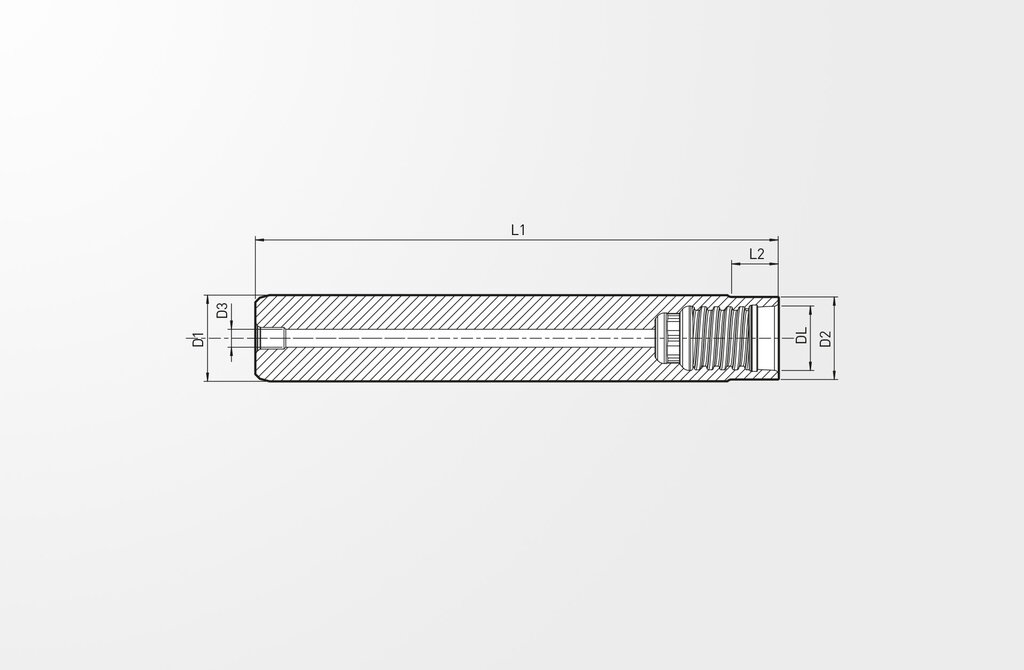

| Description | Norm: Haimer | Value: metric/inch |
|---|---|---|
| Size Duo-Lock | DL | DL20 |
| Clamping diameter | D1 | 19,05 inch / 3/4 inch |
| Diameter 2 | D2 | 18,5 inch / 0.728 inch |
| Diameter 3 | D3 | 3 inch / 0.118 inch |
| Length 1 | L1 | 76 inch / 2.992 inch |
| Length 2 | L2 | 9,5 inch / 3/8 inch |
| Shank version | Glattschaft |
| Description | Norm: DIN 4000 | Value: metric/inch |
|---|---|---|
| Mass (weight) | D7 | 0,151 kg |
| Body diameter 1 | A1 | 18,5 inch / 0.728 inch |
| Length body diameter 1 | B1 | 9,5 inch / 3/8 inch |
| Overall length | B4 | 76 inch / 2.992 inch |
| Functional length | B71 | 76 inch / 2.992 inch |
| Connection code form type machine side | C12 | 01 |
| Connection code unit base machine side | C14 | 3 |
| Connection code style machine side | C15 | 5 |
| Connection diameter, machine side | C3 | 19,05 |
| Tolerance class connection diameter ISO tolerance | C31 | h6 |
| Connection code type workpiece side | C51 | SAH |
| Connection code form type workpiece side | C52 | 01 |
| Connection thread nominal size workpiece side | C53 | DL20 |
| Connection code unit base workpiece side | C54 | 9 |
| Connection code style workpiece side | C55 | 5 |
| Connection size code workpiece side | C6 | 0200 |
| coolant entry style code | H21 | 1 |
| coolant exit style code | H22 | 1 |
| Company identification | J3 | HAI |
| interface code to workpiece side | J4 | SAH02000195 |
| Shank diameter, upper limit | C32 | 19,05 inch / 3/4 inch |
| Description | Norm: ISO 13399 | Value: metric/inch |
|---|---|---|
| Weight | WT | 0,151 kg |
| Body diameter 1 | BD1 | 18,5 inch / 0.728 inch |
| Length body diameter 1 | LBD1 | 9,5 inch / 3/8 inch |
| Overall length | OAL | 76 inch / 2.992 inch |
| Functional length | LF | 76 inch / 2.992 inch |
| Connection code unit base workpiece side | CCUWS | 9 |
| Connection code style workpiece side | CCSWS | 5 |
| Connection size code workpiece side | CZCWS | 0200 |
| coolant entry style code | CNSC | 1 |
| coolant exit style code | CXSC | 1 |
| Company identification | COMPC | HAI |
