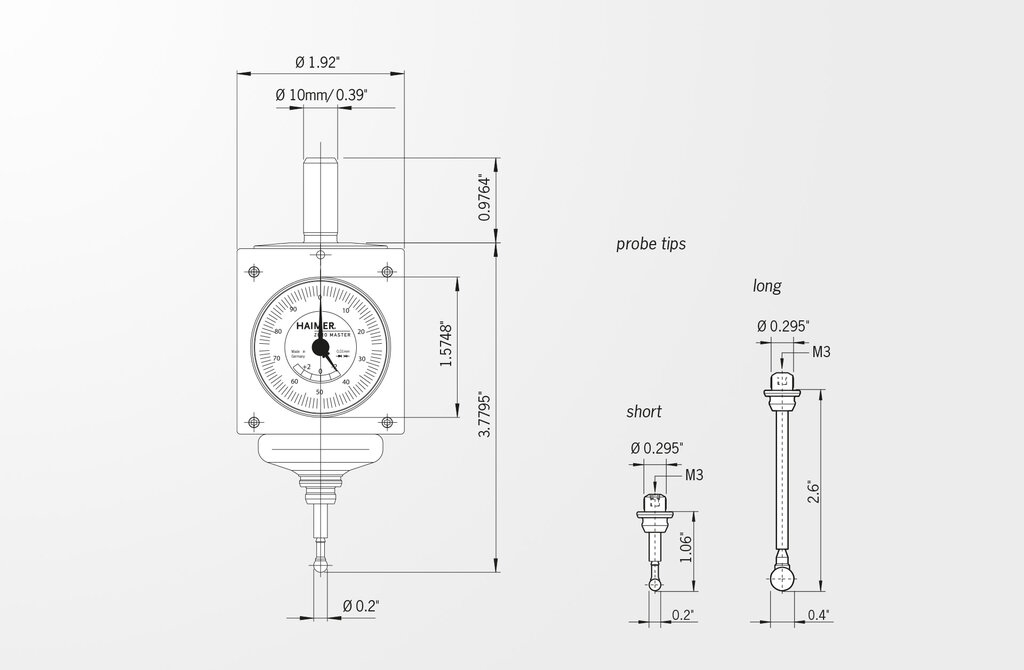

The Zero Master is the smallest 3D-Sensor worldwide. Usage, function and accuracy are equal to the Universal 3D-Sensor. The size of the Zero Master is adapted to small machines. The diameter of the clamping shank is 10mm / 0.3937inch.
Accordingly, it can be also used on machines with ISO 30 or small HSK spindles.
The housing is shortened and does not protrude far from the spindle so even large work pieces can be measured. The Zero Master can be read on its small analog dial gauge.

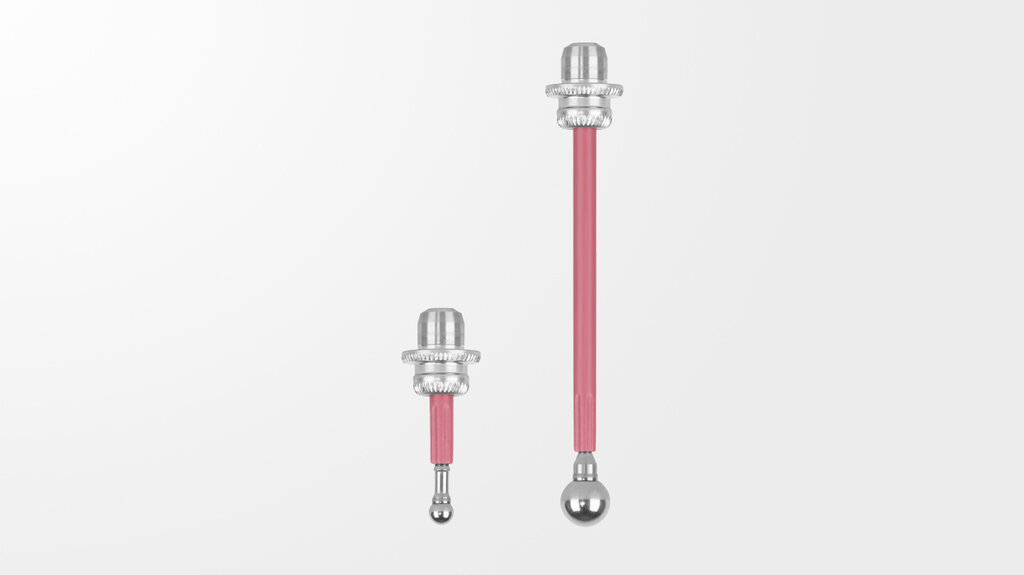

The Zero Master can be equipped with a short (ball diam. 0.2 inch) and a long (ball diam. 0.4 inch) probe tip. Naturally, the probe tips are compatible with all other HAIMER 3D-Sensors.
The Sensor is waterproof according to IP 67.
