Description

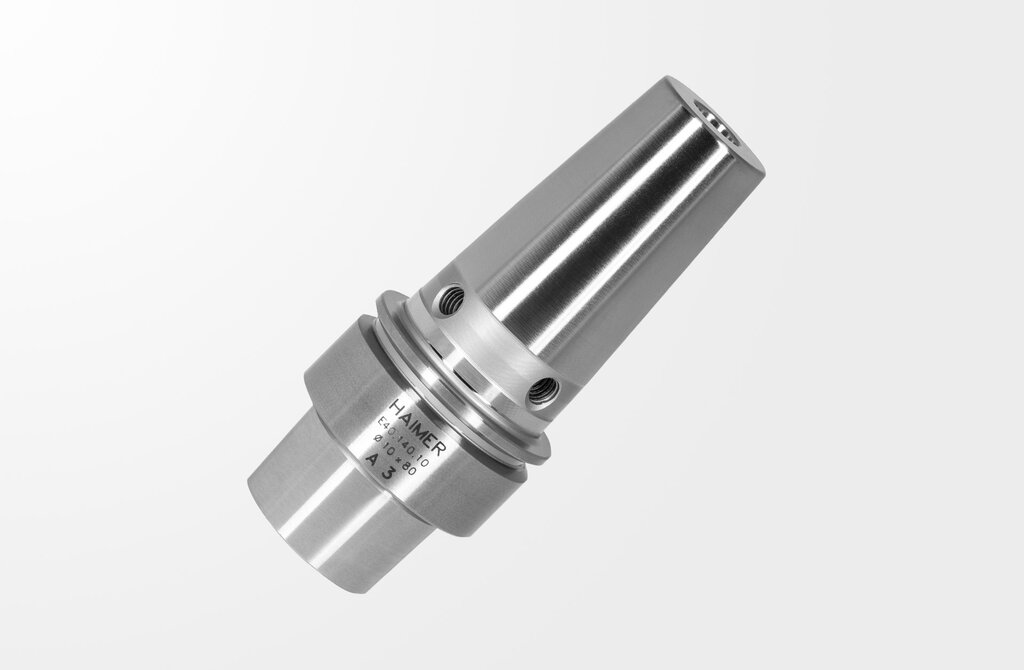

Shrink Fit Chuck Standard Version, DIN 69893-5, HSK-E40
Quality pass
Chuck body fine balanced U < 1 gmm
All functional surfaces fine machined
More accurate than DIN

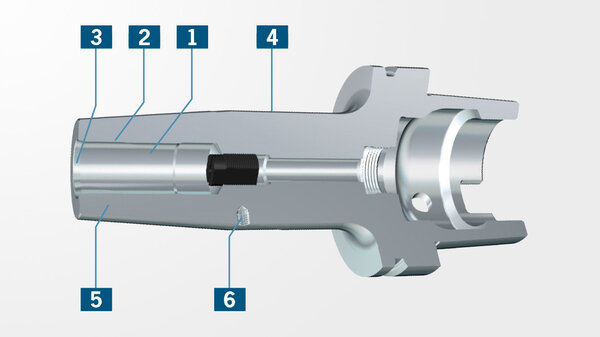

The Power Shrink Chuck is the shrink fit chuck for highest machining capacity in high-speed manufacturing. The optimized design combines high rigidity with dampening vibrations, therefore giving more protection to machines, spindles and tools.
- Heat resistant hot-working steel
- Hardened 54-2 HRC
- For HSS and solid carbide tools
- Shank tolerance h6

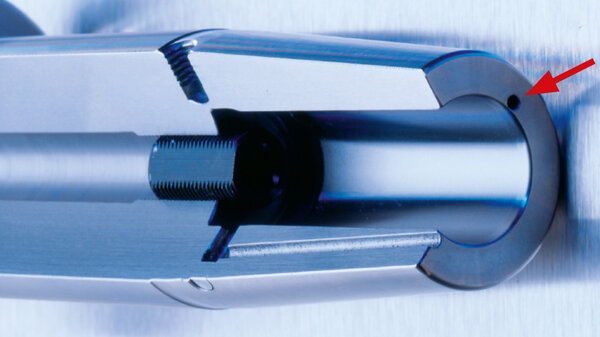

- Without threaded holes in order to balance with balancing screws

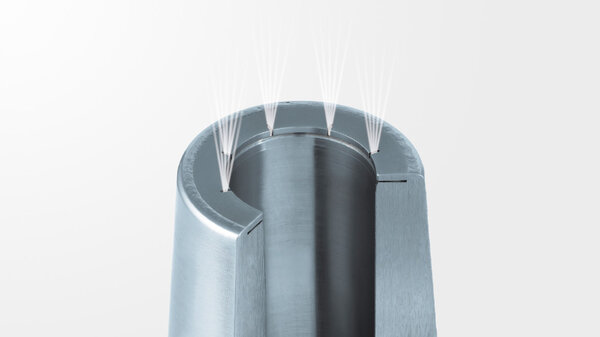

- With slits along the clamping bore for cooling from outside
Scope of Delivery
- Without backup screw
- Without coolant tube
HAIMER TIP
For a constant and acurate cooling of te cutting tool we recommend the optional cooling system Cool Jet.
For RPM higher 8000 U/min we recommend the optional cooling system Cool Flash. (on request)
Technical specifications
Notice
Technical data subjects to change without prior notice.

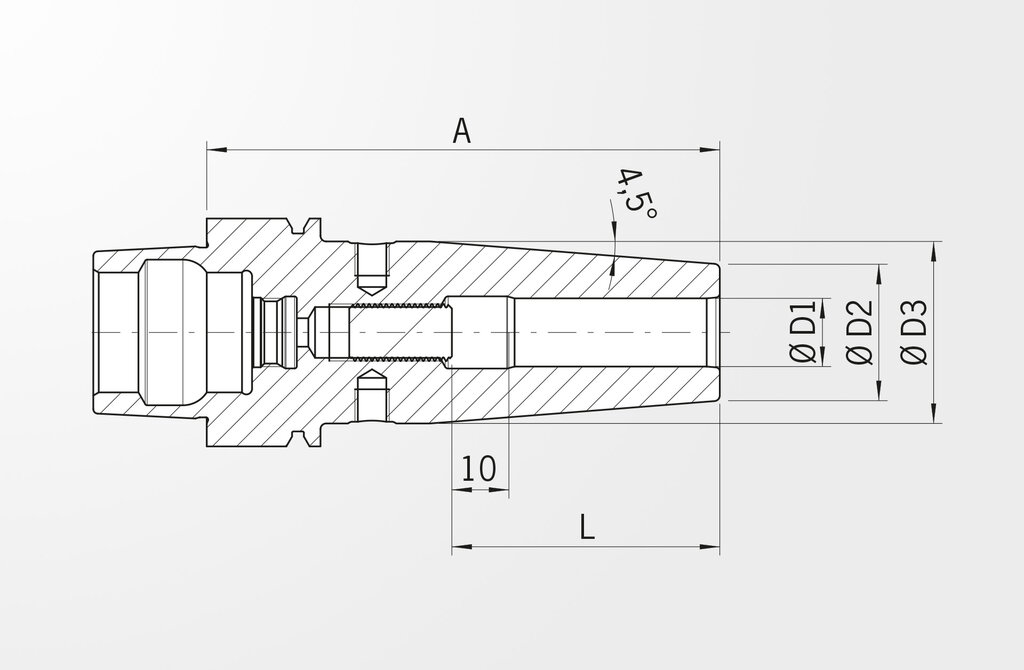

| Description | Norm: Haimer | Value: metric/inch |
|---|---|---|
| Clamping diameter | D1 | 4,7625 inch / 3/16 inch |
| Length A | A | 60 inch / 2.362 inch |
| A-length version | kurz | |
| Diameter 2 | D2 | 10 inch / 0.394 inch |
| Length | L | 15 inch / 0.591 inch |
| Interface | HSK-E40 |
| Description | Norm: DIN 4000 | Value: metric/inch |
|---|---|---|
| Mass (weight) | D7 | 0,400 kg |
| Flange diameter | A4 | 40 inch / 1.575 inch |
| Connection code type machine side | C11 | HSK |
| Connection code form type machine side | C12 | 03 |
| Connection code unit base machine side | C14 | 1 |
| Connection code style machine side | C15 | 5 |
| Connection size code machine side | C2 | 0400 |
| Balancing device | D51 | 1 |
| Company identification | J3 | HAI |
| interface code to machine side | J6 | HSK04000315 |
| Description | Norm: ISO 13399 | Value: metric/inch |
|---|---|---|
| Weight | WT | 0,400 kg |
| Flange diameter | DF | 40 inch / 1.575 inch |
| Connection code type machine side | CCTMS | HSK |
| Company identification | COMPC | HAI |
