For holding face mill cutters and cutters with radial driving slot DIN 1880 and exceeding clamping diameter 40 clamping according to DIN 2079 is possible, too (4 additional tapping holes).
According to DIN 6357 with taper SK40 form AD/AF DIN ISO 7388-1 (formerly DIN 69871).
Form AD/AF means: Central coolant supply and coolant channels on the collar which can be sealed again.
With coolant exit bores on the end face for milling cutters with central cooling
Face Mill Arbor, DIN ISO 7388-1, SK40
(formerly DIN 69871)
Face Mill Arbor, DIN ISO 7388-1, SK40
(formerly DIN 69871)
Quality pass
Chuck body fine balanced G2.5 at 22.000 rpm
All functional surfaces fine machined
Taper tolerance AT3
Coolant supply form AD/AF
- With coolant exit bores on the end face for milling cutters with central cooling
Scope of Delivery

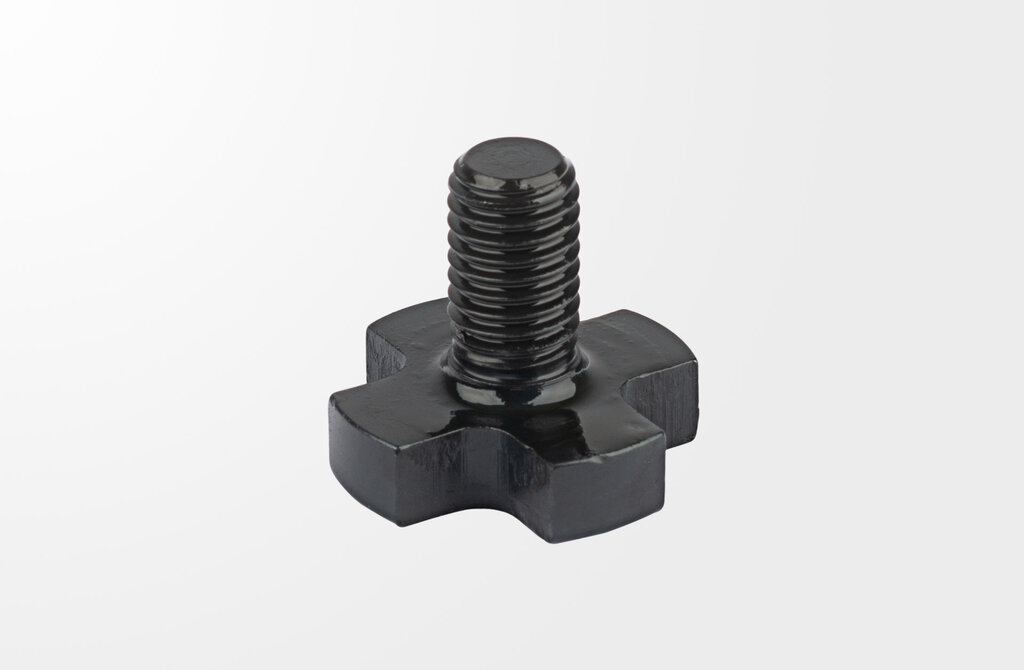

- With tightening bolt
Face Mill Arbor, DIN ISO 7388-1, SK40
| Description | Norm: | Value: metric/ inch |
|---|---|---|
| Clamping diameter | D1 | 0.63 inch |
| Length A | A | 1.378 inch |
| A-length version | short | |
| Diameter 2 | D2 | 1.26 inch |
| Length | L | 0.669 inch |
| Interface | SK40 | |
| Mass (weight) | D7 | 2.183 lbs |
| Connection code type machine side | C11 | SKG |
| Connection code form type machine side | C12 | 17 |
| Connection thread nominal size machine side | C13 | M16 |
| Connection code unit base machine side | C14 | 9 |
| Connection code style machine side | C15 | 5 |
| Connection size code machine side | C2 | 0400 |
| Company identification | J3 | HAI |
| interface code to machine side | J6 | SKG04001795 |
| Weight | WT | 2.183 lbs |
| Connection code type machine side | CCTMS | SKG |
| Company identification | COMPC | HAI |
Description
Face Mill Arbor, DIN ISO 7388-1, SK40
(formerly DIN 69871)
Quality pass
Chuck body fine balanced G2.5 at 22.000 rpm
All functional surfaces fine machined
Taper tolerance AT3
Coolant supply form AD/AF
For holding face mill cutters and cutters with radial driving slot DIN 1880 and exceeding clamping diameter 40 clamping according to DIN 2079 is possible, too (4 additional tapping holes).
According to DIN 6357 with taper SK40 form AD/AF DIN ISO 7388-1 (formerly DIN 69871).
Form AD/AF means: Central coolant supply and coolant channels on the collar which can be sealed again.
With coolant exit bores on the end face for milling cutters with central cooling
According to DIN 6357 with taper SK40 form AD/AF DIN ISO 7388-1 (formerly DIN 69871).
Form AD/AF means: Central coolant supply and coolant channels on the collar which can be sealed again.
With coolant exit bores on the end face for milling cutters with central cooling
- With coolant exit bores on the end face for milling cutters with central cooling
Scope of Delivery
- With tightening bolt
Technical specifications
Face Mill Arbor, DIN ISO 7388-1, SK40
| Description | Norm: | Value: metric/ inch |
|---|---|---|
| Clamping diameter | D1 | 0.63 inch |
| Length A | A | 1.378 inch |
| A-length version | short | |
| Diameter 2 | D2 | 1.26 inch |
| Length | L | 0.669 inch |
| Interface | SK40 | |
| Mass (weight) | D7 | 2.183 lbs |
| Connection code type machine side | C11 | SKG |
| Connection code form type machine side | C12 | 17 |
| Connection thread nominal size machine side | C13 | M16 |
| Connection code unit base machine side | C14 | 9 |
| Connection code style machine side | C15 | 5 |
| Connection size code machine side | C2 | 0400 |
| Company identification | J3 | HAI |
| interface code to machine side | J6 | SKG04001795 |
| Weight | WT | 2.183 lbs |
| Connection code type machine side | CCTMS | SKG |
| Company identification | COMPC | HAI |
All product variants
With the help of our filter you can refine your search by selecting attributes.
Filter
| Order No. | A-length version | Clamping diameter | Interface | Length A | Downloads | metric/ inch |
|---|---|---|---|---|---|---|
| 40.350.16.1.KKB | short | 0.63 inch | SK40 | 1.378 inch |
Download after registration
|
|
| 40.350.16.KKB | short | 0.63 inch | SK40 | 1.378 inch |
Download after registration
|
|
| 40.350.22.KKB | short | 0.866 inch | SK40 | 1.378 inch |
Download after registration
|
|
| 40.350.27.KKB | short | 1.063 inch | SK40 | 1.378 inch |
Download after registration
|
|
| 40.350.32.KKB | short | 1.26 inch | SK40 | 1.969 inch |
Download after registration
|
|
| 40.350.40.KKB | short | 1.575 inch | SK40 | 1.969 inch |
Download after registration
|
|
| 40.351.16.KKB | long | 0.63 inch | SK40 | 3.937 inch |
Download after registration
|
|
| 40.351.22.KKB | long | 0.866 inch | SK40 | 3.937 inch |
Download after registration
|
|
| 40.351.27.KKB | long | 1.063 inch | SK40 | 3.937 inch |
Download after registration
|
|
| 40.351.32.KKB | long | 1.26 inch | SK40 | 3.937 inch |
Download after registration
|
